EV charger + ESS Permit

We offer precise permit designs for EV chargers and Energy Storage Systems (ESS), ensuring safety, code compliance, and fast approval.

EV Charger + ESS Permit Design Services

The need for battery energy storage systems (ESS) and EV chargers is increasing quickly as the globe moves closer to electric mobility and energy independence. For EV charger installations and battery storage systems, Ramsun Solar Design offers expert, code-compliant permit design services that guarantee your project is secure, effective, and completely authorized by local authorities.

Our knowledgeable design staff is available to assist you at every stage, whether you’re a corporation setting up a fleet of chargers and storage systems or a household wishing to charge your electric car at home.

✅ EV Charger and Battery System Layouts

We start every project by designing precise and comprehensive layouts for the installation of EV chargers and ESS. Our designs take into account the best locations for chargers and battery units based on the layout of your house, the position of the electrical panel, the parking arrangement, and accessibility. Every plan is customized to meet your unique requirements, whether they are business or domestic, while optimizing effectiveness and lowering expenses and cable runs.

Our staff makes sure the layout satisfies all AHJ (Authority Having Jurisdiction) regulations, manufacturer specifications, and installation best practices in addition to being aesthetically pleasing.

✅ Load Calculation and Panel Upgrades

Knowing the electrical load capacity of your building is one of the most important aspects in installing an EV charger. To find out if your existing service panel can manage the extra demand from the EV charger and battery system, we do thorough load calculations based on NEC criteria.

We give recommendations for panel upgrades in our permit set if the current panel is small. This covers utility coordination rules, sub-panel configurations (if necessary), breaker sizing, and new panel requirements. Our staff makes sure your system is expandable for more EVs or larger battery systems, as well as future-ready.

✅ Electrical Wiring Diagrams

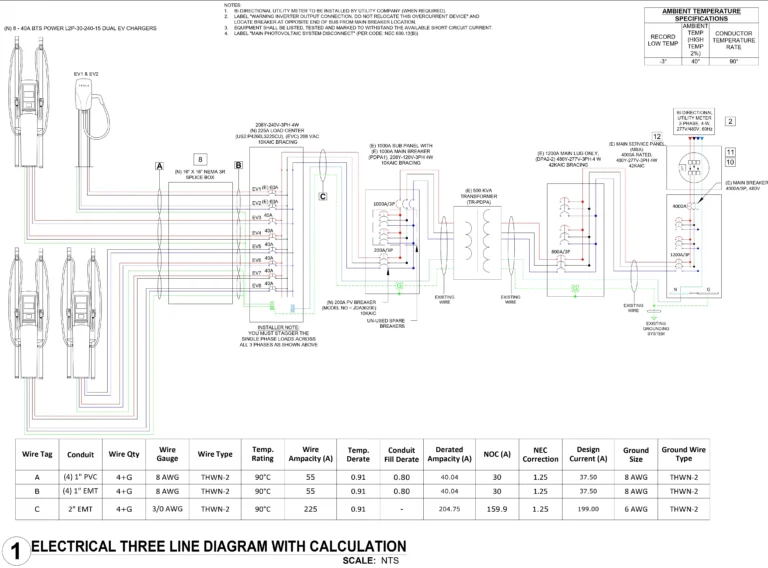

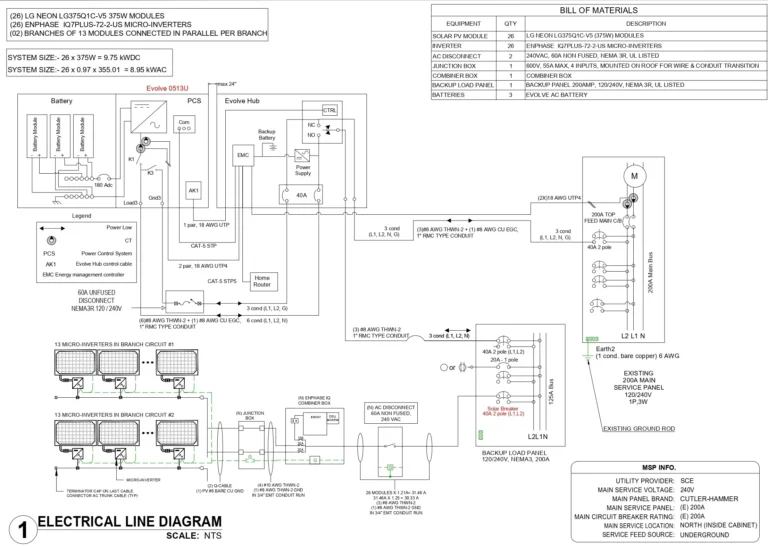

We create thorough wiring schematics that show exactly how the EV charger and battery system will be connected to your current electrical setup. Among these diagrams are:

Sizes and runs of conduits
Wire dimensions and requirements
Locations of breakers and disconnects
Techniques for bonding and grounding
Information on how the charger, inverter, panel, and meter are connected

Our expertly prepared and precise wiring schematics minimize the amount of back and forth with local permits offices and expedite the inspection process.

✅ Compliance with Local Building and Fire Codes

The key is compliance. Local construction, fire, and electrical rules must be followed while installing EV chargers and batteries. Our design professionals keep abreast of the most recent specifications, which include clearance, emergency shutoffs, ventilation, signage, and battery spacing.

We make sure your system complies with national norms like NEC 2020 or 2023 (depending on your jurisdiction), utility interconnection requirements, and fire department regulations. This guarantees quicker building department approvals and cuts down on delays.

✅ Complete Permit Sets for Residential & Commercial Use

For both residential and commercial EV charger installations, Ramsun Solar Design provides AHJ-compliant, permit-ready plan sets. Usually, our permit packages consist of:

Cover Sheet and Work Scope
Site Design and Equipment Positioning
Calculations of Electrical Load
One-Line Diagrams with Wiring Diagrams
Datasheets and specification documents for equipment
Panel Timetables (Prior to and Following)
Notes on Fire Safety and Code Compliance
Stamps from engineers

Our plan sets provide quick turnaround times and revision support when necessary, and they are approved in jurisdictions throughout the United States and Canada.

Why Choose Ramsun Solar Design?

✔️ Expert knowledge in EV charger and battery system design
✔️ NEC and AHJ compliant drawings
✔️ Fast turnaround and support with corrections
✔️ Scalable designs for future system expansions
✔️ Affordable pricing with zero compromise on quality

Ramsun Solar Design is your go-to partner for dependable, permit-ready designs, whether you’re setting up a commercial EV charging hub with built-in battery storage or a Level 2 home charger.

EV charger + ESS Permit
