Services
At Ramsun Solar Design, we provide fast, accurate, and code-compliant solar permit design services for residential and commercial projects across the U.S. Our offerings include solar Permit designs, EV charger layouts, and energy storage system (ESS) permitting — all tailored to meet local AHJ and utility requirements.
Our Permitting Services
We offer permit-ready solar designs that include solar EV chargers, and ESS systems for residential, commercial, and Aurora-based projects. These designs are completely comply with AHJ, utility, and code standards.
01.
Residential Solar
Custom solar designs for homes that are optimized for optimal efficiency and quick permit approval can lower electricity costs, boost property values, and support clean, renewable energy.
02.
Commercial Solar
Designed for performance, compliance, and long-term savings, solar design solutions help organizations save energy costs, enhance sustainability, and meet large-scale power demands.
03.

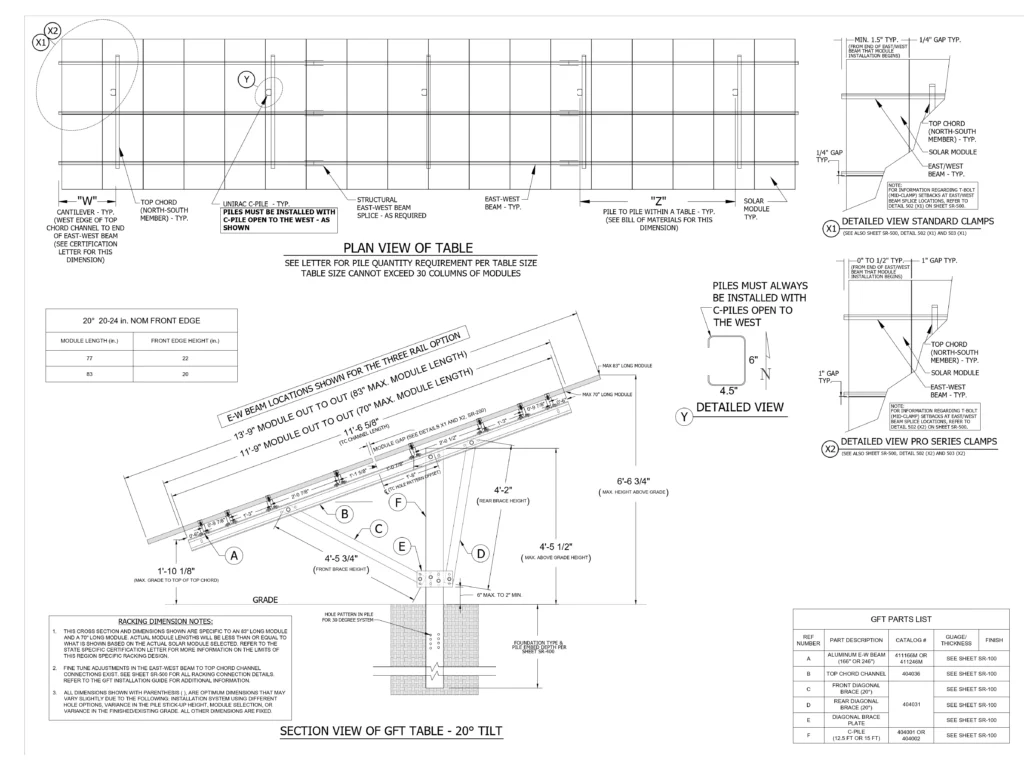

Ground-Mount Solar
Open-land solar systems are perfect for homes without appropriate rooftops since they are made to get the most sunlight possible, require little upkeep, and produce a lot of electricity.
04.
EV Charger + ESS Permit
Design and permitting assistance for energy storage systems and electric vehicle chargers—ensuring code compliance, safe installation, and seamless approval for contemporary energy solutions.
05.
Stamping Services
For solar plans, licensed engineering (PE) stamps are necessary for code compliance and permit acceptance. We make sure your plans adhere to electrical and structural requirements so you can proceed with projects on time.
06.

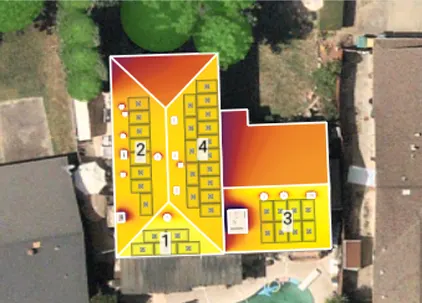

Aurora design
High-precision solar layouts created using Aurora Solar software—featuring 3D modeling, shading analysis, and accurate energy production estimates to support faster approvals and better system performance.
Rooftop solar system layout (pitched/flat)
Single Line Diagram (SLD)
Solar access & shade reports
Permit-ready drawing sets
NEC code-compliant designs
Large-scale system layouts & equipment placement
Electrical design with load calculations
Utility coordination and interconnection support
Structural details and mounting plans
Permit documentation tailored to AHJ requirements
Ground array layout with tilt & spacing
Trenching & conduit design
Foundation and racking details
Electrical schematics
Structural analysis for soil and wind loads
EV charger and battery system layouts
Load calculation and panel upgrades (if needed)
Electrical wiring diagrams
Compliance with local building and fire codes
Complete permit sets for residential & commercial use
Structural and electrical engineering review
State-certified PE stamps for drawings
Stamps available for multiple U.S. states
Fast turnaround and code-compliant review
3D modeling with high-accuracy roof measurements
System production simulations
Remote shade analysis
Sales proposal-ready visuals
Permit and proposal exports using Aurora platform
Our specification
At Ramsun Solar Design, we specialize in providing complete and reliable solar permit design services. Our plans are built to meet all critical requirements for a seamless and code-compliant solar installation.
Our site plan reflects the exact layout and orientation of the solar array. This ensures peak system efficiency while maintaining compliance with local codes and AHJ standards.
The roof plan is created with structural accuracy, showing precise solar panel placement. We account for roof load capacity, pitch, and shading to guarantee safety and high performance.
Our string layout is optimized for load balancing and efficiency. Each panel group is carefully arranged to deliver long-term, consistent energy production.
We provide a detailed electrical line diagram, showing all necessary electrical connections and components. This helps inspectors and installers execute the setup safely and efficiently.
Every design includes industry-standard placards with system specifications, safety labels, and shutdown instructions — all to ensure installer clarity and code compliance.
Our hardware specs cover mounting systems, rails, clamps, and electrical parts. We use only high-quality, code-approved components tailored to your project’s requirements.
With our focus on accuracy, clarity, and compliance, your solar project is in expert hands — from permit approval to final installation.
